Scottish invention · The science inside a raincoat
Charles Macintosh patented a method of making waterproof fabric in 1823 by bonding two layers of cloth with rubber dissolved in coal-tar naphtha. The Glasgow chemist’s important contribution was a workable composite: textile on either side, a water-blocking layer within. Its success depended on both chemistry and construction, and the first coats still had serious problems with smell, temperature and comfort.
That combination makes the story more useful than the familiar phrase “the man who invented the raincoat”. Look closely at the material and you can see why a good waterproof sheet does not automatically make a good waterproof garment.

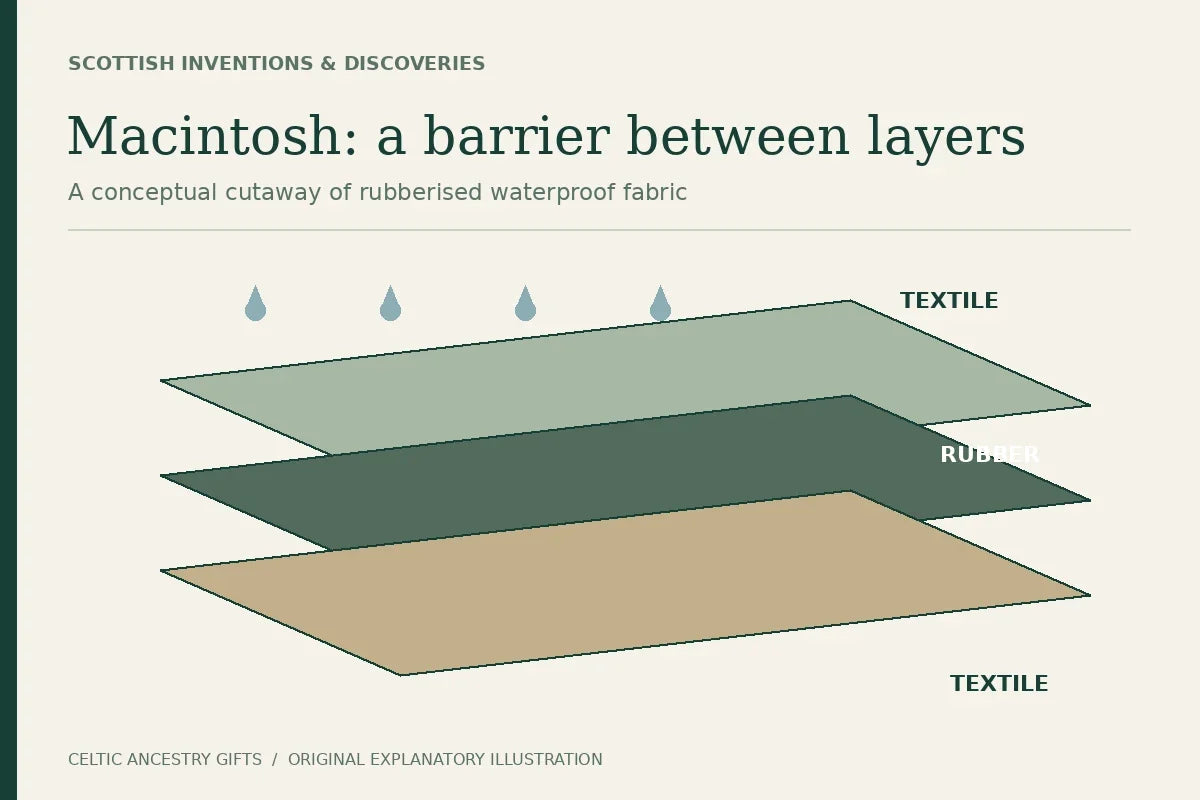

The invention is easiest to understand in cross-section
Ordinary woven cloth contains spaces between its yarns. Adding a continuous rubber layer changes the route water would have to take through it. The fabric faces give the composite its textile surfaces, while the rubber between them provides the barrier.
Read the layers from weather to wearer
Rain meets the outer face ↓
Provides the visible textile surface and covers one face of the rubber. Wetting this outer layer is different from water passing through the whole composite.
The continuous layer obstructs liquid water passing through the fabric. Its condition matters: gaps, damage or deterioration compromise the barrier.
Completes the bonded material and separates the rubber layer from the clothing or body underneath.
The construction question: what happens when a needle passes through all three layers? The answer leads straight to the importance of waterproof seams.
A contemporary account of the patent, reprinted in the 1825 Polytechnisches Journal, describes coating the cloth, bringing the prepared faces together, passing them through rollers and drying the bonded material. The manufacturing sequence helps explain why the achievement involved more than putting a waterproof substance on a coat.
What did the naphtha actually do?
Naphtha served as a solvent: it allowed rubber to be distributed as a coating. Once the solvent evaporated, the rubber remained. Its job was therefore different from that of the finished barrier. The process used a material obtained from coal tar, linking textile production with the expanding gas and chemical industries.
Rubber itself was already known and used long before Macintosh. The American Chemical Society’s history of rubber describes earlier rubber-coated balloon fabric as well as Macintosh’s use of naphtha. His contribution belongs within that longer material history, rather than being a discovery that rubber existed or that humans could protect themselves from rain.
Three ways the early material could disappoint
- At the seam: a new route for water
- Cutting and sewing turn a flat sheet into a useful shape, but stitch holes can interrupt its barrier. Seams need their own treatment. Documentation of coat-making in Google Arts & Culture’s Macintosh exhibit shows the role of gluing and taping seams. A dry fabric sample alone cannot establish that a whole garment will keep water out.
- In changing weather: unstable rubber
- Early natural rubber was troublesome across a wide temperature range. Cold could make it hard and stiff; heat could make it sticky. Enclosing the rubber between cloth layers made it more usable, but did not eliminate the material’s temperature sensitivity. Smell also limited the early coats’ appeal.
- Inside the coat: trapped moisture
- The same barrier that resisted rain also restricted the escape of moisture from the wearer. The Science and Industry Museum describes early macs as heavy and poorly breathable. Someone could become damp from perspiration even when rain had not penetrated the fabric. Protection from outside water and comfort during exertion are separate tests.
Why later rubber improvements mattered
Vulcanisation improved rubber’s usefulness by creating chemical links between its long molecular chains. Sulphur-based curing made the material more resistant to temperature changes. Charles Goodyear’s work in the United States and Thomas Hancock’s work in Britain are important parts of that development; it should not be folded into Macintosh’s 1823 patent as though the first cloth already possessed every later improvement.
The difference is easy to picture. Lamination concerns how layers are assembled. Vulcanisation changes the rubber itself. A manufacturer could therefore retain the cloth–rubber–cloth arrangement while improving the behaviour of its middle layer.
Scottish chemistry met Manchester manufacturing
Macintosh’s idea needed industrial partners. The Science Museum Group records that in 1824 he persuaded the Birley brothers, cotton manufacturers and merchants, to build a factory alongside their Manchester mill. Their textile resources helped turn the chemical process into manufactured goods.
The early business was not an effortless fashion triumph. The museum identifies armed-services customers and stagecoach travellers among those who sustained demand while the company took time to become profitable. Hancock and Macintosh began cooperating in the 1820s; Hancock became a partner in 1831. Later improvements widened the usefulness and appeal of rubberised products.
That progression is an important part of the invention: laboratory possibility, practical fabric, reliable manufacture and a market were different problems. A coat remembered by one man’s name also depended on partners, textile workers and continuing material development.
A three-question way to read any waterproof garment
- Where is the barrier? Identify the layer or treatment that resists water, rather than judging only the outer fabric.
- What happens at the joins? Look for an explanation of seams, closures and openings.
- Where can body moisture go? Breathability and ventilation answer a different question from resistance to rain.
Two common questions
Why is the coat often spelt “mackintosh”?
The familiar garment name acquired an extra “k”, while the chemist is usually named Charles Macintosh. The Science Museum Group records “mackintosh” being used for raincoats by 1836. The spelling difference can make searches confusing, so use the inventor’s full name when looking for the scientific history.
Did Macintosh invent every kind of waterproof fabric?
No. His 1823 patent described a particular rubber-bonded construction. Waterproofing has a much longer history, and other coatings, treatments and membranes work differently. The clearest credit is for his influential method of manufacturing rubberised waterproof cloth.
