Scottish invention · Heat and power
James Watt greatly improved the fuel efficiency of the steam engine by condensing steam in a separate chamber, allowing the main cylinder to stay hot. He developed the idea in 1765 and patented it in 1769. Newcomen engines were already doing useful work pumping mines. Watt tackled a costly weakness in an established technology.
The best way into his achievement is to follow the heat. Every time an engine cooled a cylinder and then heated it again, some of its fuel went into repeating that temperature change. Watt saw a way to separate two jobs that needed very different conditions.
A working machine with an expensive habit
Born in Greenock in 1736, Watt trained as an instrument-maker and established a workshop at the University of Glasgow. This placed careful practical work alongside scientific investigation. Repairing the university’s model Newcomen engine in 1763 drew his attention to the amount of steam needed to keep it working.
In a Newcomen engine, steam entered a cylinder and was then cooled so that it condensed. The resulting drop in pressure allowed atmospheric pressure to drive the piston. The system was useful enough to spread through mining districts, where removing water made deeper working possible.
The difficulty was that condensation also cooled the cylinder itself. Fresh steam entering for the next cycle lost heat to those cooled surfaces. More steam, and therefore more fuel at the boiler, was needed. The loss was a commercial problem as well as a scientific puzzle.
| Question | Earlier arrangement | Watt’s improvement |
|---|---|---|

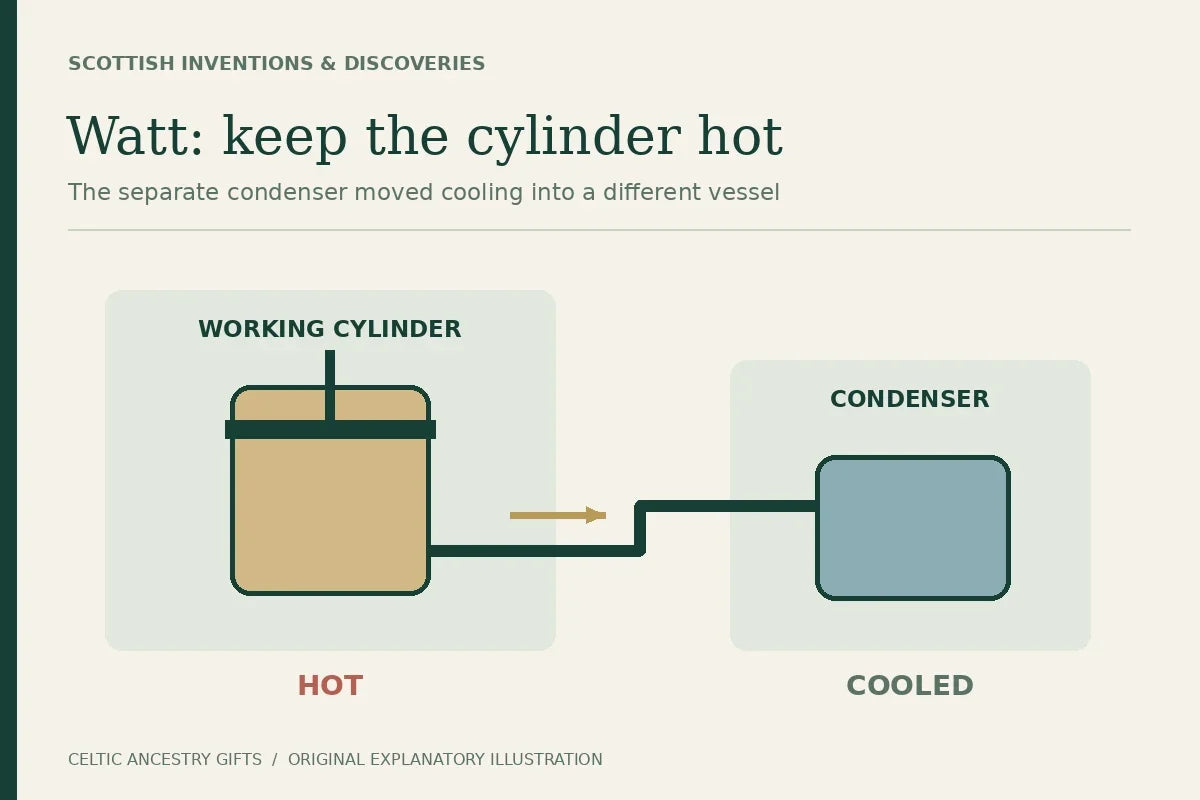

| Where does steam condense? | Inside the working cylinder | In a separate, cooler chamber connected to it |
| What happens to the cylinder? | It is repeatedly cooled and reheated | It can remain hot while condensation happens elsewhere |
| Where is the saving? | Incoming steam must replace heat lost from the cylinder | Less steam is wasted reheating those surfaces |
A simple analogy is repeatedly warming a heavy cup, cooling it, then warming it again. You expend energy on the cup as well as its contents. The engine’s pressure cycle is more complicated, but the analogy helps identify the unwanted burden: repeatedly changing the temperature of the container.
From a condenser model to useful industrial power
The Science Museum Group preserves a second condenser model made in 1765. Its catalogue notes alterations and a problematic pasteboard seal. That small object is a useful corrective to the idea that one insight immediately produced a reliable industrial machine. Materials, sealing, construction and repeated testing mattered.
Watt’s partnership with Birmingham manufacturer Matthew Boulton helped turn the work into a business. Later engines and mechanisms extended the uses of steam power, including driving rotating machinery. Designing an engine for a customer also involved deciding its capacity, organising manufacture and overseeing installation.
Factories gained another option beyond water power, but a steam engine still required fuel, water, maintenance and skilled attention. Its advantage depended on the job and the location. The historical change was substantial without every workshop instantly abandoning its waterwheel.
Why fuel efficiency mattered to an owner
Imagine two engines carrying out the same pumping job. If one uses less coal over the same working period, its owner may save on fuel and the labour of handling it. That saving becomes especially important where coal must be transported a long distance.
The comparison needs a fair starting point: the same amount of useful work. A machine that consumes less fuel only because it does less work has not necessarily become more efficient. This is a valuable question to bring to any claim about an improved technology, from an eighteenth-century pump to a modern appliance.
What does a watt measure?
The unit named after James Watt measures power, the rate of energy transfer. One watt is one joule per second. A device drawing 10 watts for 60 seconds uses 600 joules of energy in this simplified example.
For a light bulb, its electrical wattage tells you the rate at which it takes in electrical energy. Visible light output is commonly stated in lumens. Two lamps can use the same electrical power while producing different amounts of light, which is why wattage alone is not a brightness rating.
That distinction brings us back to Watt’s central problem: what useful result do we obtain from the energy going into a machine?
A practical Scottish legacy
Watt’s story belongs alongside McAdam’s work on durable roads: both examined familiar systems and asked where they were failing. Explore the wider Scottish inventions series for other improvements with lasting consequences.
If Greenock, Glasgow or another Scottish place is part of your own story, browse our Scottish locations collection. A note about the place and a particular engineering idea makes a thoughtful accompaniment to a gift.
Sources for a closer look
- Science Museum Group: James Watt, for his instrument-making, model-engine work and later developments.
- Science Museum: James Watt and the separate condenser, for the 1769 patent and the thermal principle.
- Science Museum Group: Watt’s second condenser model, for evidence of practical development.
- Science Museum: making Watt’s engines a commercial proposition, for design, manufacture and installation.
- NIST: SI units, for power in watts and luminous flux in lumens.
